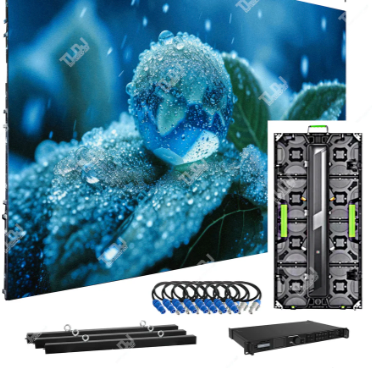

P3.9 16ft x 9ft LED Indoor Video Wall
3.91mm Indoor LED Video Wall – 16x9 ft | 10x3 Cabinet Setup (500x1000mm)
Create an immersive visual experience with this high-resolution P3.91 Indoor LED Video Wall, configured for a 16 ft x 9 ft display using 30 die-cast aluminum cabinets (10 wide × 3 tall). Perfect for churches, trade shows, DJs, and permanent installs, this wall offers superior performance and clarity for all indoor environments.
📐 Configuration:
-
Cabinet Size: 500mm x 1000mm (19.7" x 39.4")
-
Cabinet Quantity: 10 wide × 3 tall = 30 cabinets total
-
Final Wall Size: 5,000mm × 3,000mm (16.4 ft × 9.84 ft)
-
Total Area: ~48m²
🔧 Technical Specifications:
-
Pixel Pitch: 3.91mm
-
LED Type: SMD1921
-
Pixel Density: 65,536 pixels/m²
-
Module Resolution: 64 × 64
-
Module Area: 0.32m²
-
Brightness: 800 cd/m²
-
Viewing Angle: 160° Horizontal / 160° Vertical
-
Refresh Rate: ≥3840Hz
-
Best Viewing Distance: 3m to 45m
-
Scan Mode: 1/16
-
Power Consumption: Max 800W/m², Avg 400W/m²
-
Input Voltage: 110V / 240V AC
-
Weight per Cabinet: 8kg
-
Ingress Protection: Front IP65 / Back IP40
-
LED Lifespan: ≥100,000 Hours
-
Defect Rate: ≤0.0001
-
Operating System Compatibility: Windows 98 / XP / 2000 and more
-
Warranty: 1 Year
-
Certifications: CE, FCC, RoHS, CCC
🎁 Included in Package:
-
30x P3.91 LED Cabinets (500mm x 1000mm)
-
Nova Receiving Cards
-
Power & Signal Cables
-
Nova LED Playback Software
-
Category 6 Shielded Network Cables
-
Aviation Power Cords
-
Main Network & Power Cables
-
Flight Case Packaging
-
Spare Parts: 40 Modules, 2 Receiving Cards, 2 Power Supplies
Video processor and fly bars available as optional add-ons.
For a personalized quote, please contact us today and let us help you make your vision a reality.
SPECIFICATIONS
- Product Model: P3.91
- Pixel Pitch: 3.91 mm
- Module Size: 500*1000mm
- Weight: 33 lbs
- Environment: Outdoor
- Cabinet Resolution: 128*128 dot(s)
- Pixel Dot Density: 65536 dot/m2
- Material Quality: Die-cast aluminum back cover + aluminum substrate
- Cabinet Material: Aluminum profiles/Iron profiles
- Brightness: 700-1000 nits
- Refresh Rate: 3840Hz
- Best Viewing Distance: 3m - 45m
- Operating Life: 100,000 hours
- Power Consumption (max/avg): 400/160 w/m2
- Input Voltage (AC): 110V / 240V
- Defect Rate: ≤0.0001
- Packaging: Flight Case/Wooden Case
- Warranty: 1 year
- Certificate: CE, FCC, CCC
WHAT YOU ARE GOING TO GET
✅ 30 Panels 500x1000mm P3.91
✅ 12 Powercon Link Cable
✅ 12 Ethernet Cable
✅ Set of Steel Plates and Screws for Support
✅ 3 Road Cases (fits accessories and eight 500x1000mm panels each)
✅ 3 1m Hanging/Fly Bar (or 6 0.5m)
✅ Novastar VX400
